Antenna is a important part of RFID, mainFunction is transmitting signal betweenReader and tag, we supply ascendant per-formance UHF antenna which is able to meet many different kind of applicationrequirement. When it works with our fixed reader, it can be more accurate, fast and efficient to read tag data.
Product parameters

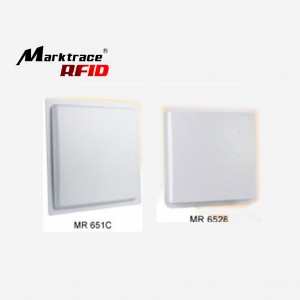

Model MR651C MR6528
Frequency ISM902~928MHz ISM865~868MHz ISM902~928MHz ISM865~868MHz
Gain 12dBi 7dBi
Horizontal -3db beam width 40 68
Vertical -3db beam width 39 68
Front-Back ＞25dB ＞25dB
Polarization Linear Polarization Circular Polarization
Input Impedance(Ω) 50 50
Voltage standing wave ratio ＜1.2 ＜1.2
Power Capacity(W) 500 500
Connector N N
Third order intermodulatio ＜-150dBc ＜-150dBc
Lightning Protection DC to ground DC to ground
Size 440x440x50mm 240x240x30mm
Weight 4.25kg 1kg
Antenna Material ABS/glass fiber reinforce plastic ABS/glass fiber reinforce plastic
