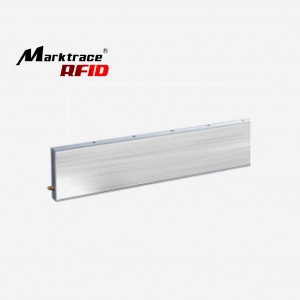

902-928MHz 5dBi Panel Directional Antenna

CONTACT US

PROJECT DETAILS

Product Name: 902-928MHz 5dBi Panel Directional Antenna
Product Model: MR6525
Product Category: UHF RFID ANTENNA
MR6525

Product parameters

  • Model MR6525
  • Electrical specifications
  • Frequency range (MHz)?902-928
  • Polarization
  • CircularGain(dBi)?5
  • Half-power beam width(°)?Hor:60 Ver:72
  • Front-to-back ratio(dB)?≥20
  • Impedance(Ω)?50
  • VSWR?≤1.4
  • Maximum input power(W)?100
  • Lightning protection?DC Ground
  • Mechanical specifications
  • Connector SMA-female
  • Connector position?Bottom
  • Size(mm)?460×90×20
  • Packing siz(mm)480×100×30
  • Antenna weight(kg)?0.2
  • Packing weight(kg)?0.35
  • Wind loading area(㎡)?≤0.2
  • Rated wind velocity(m/s)?36.9
  • Reflector material?Aluminum
  • Radome material? ABS
  • Radome color White
  • Operating temperature(℃)?-40~55
