PROJECT DETAILS
PRODUCT NAME:

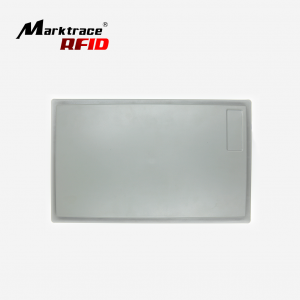

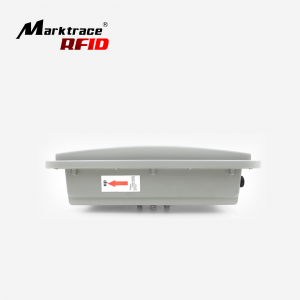

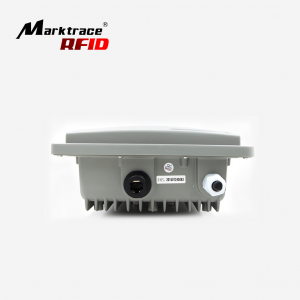

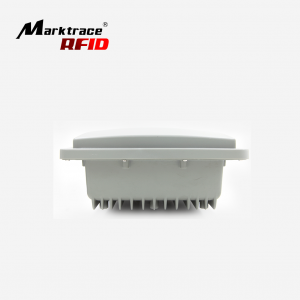

RFID 2.4G Active Reader MR3104E
PRODUCT MODEL:
MR3104E
PRODUCT CATEGORY:
2.4G RFID READER
Product overview
MR3104E is directional integrated reader?adopts the industry grade design, integrates?2.4G antenna and reader module, and it?is dustproof and waterproof, suitable for?severe outdoor environment.
Product parameters
Model? MR3104EOperation Frequency? 2440MHz, 2444MHzCommunication Mode? Dynamically encrypt mode
Wireless Transmission Rate? 1MBps
Signal Modulation mode? GFSK
Operation Mode? Read tag only
Microwave Communication ? CRC8 Cyclic Redundancy Check
Receipting Sensitivity? -85dbm
Identify Mode? Directional identification, horizontal 60℃,vertical 60℃
Indentify Range? 0~80m (depends on tag power)
Indentify Speed? in 80KM/h
Anti-?conflict ion? >100 cards at the same time
Wrong probability? one in ten million
Sound Indication? Buzzer built-in
Developing Interface? offer all types of port functions
Data Interface? RS232,RS485, wiegand, TCP/IP
Power Adapter? DC+9V
Rated current? 120mA
Operation Temperature? -40℃~+85℃
Weight? 2KG
IP Grade? IP-53
Dimension? 285(length)*205(width)*77(Height)mm
